Bafang mid-drive motor kit BBS01B 36V 250w [Black]
> Home > All E-Bikes > Parts and Accessories > E-Bike Accessories > Mid Drive Motors and Conversion Kits > Bafang mid-drive motor kit BBS01B 36V 250w [Black]
![Bafang mid-drive motor kit BBS01B 36V 250w [Black]](/images/562133/pid5574966/4MK0000002.jpg)
Features
Features:
Intelligent DC motor system. Effective torque, continuation and power.
Light and take up little space. Easy to assemble.

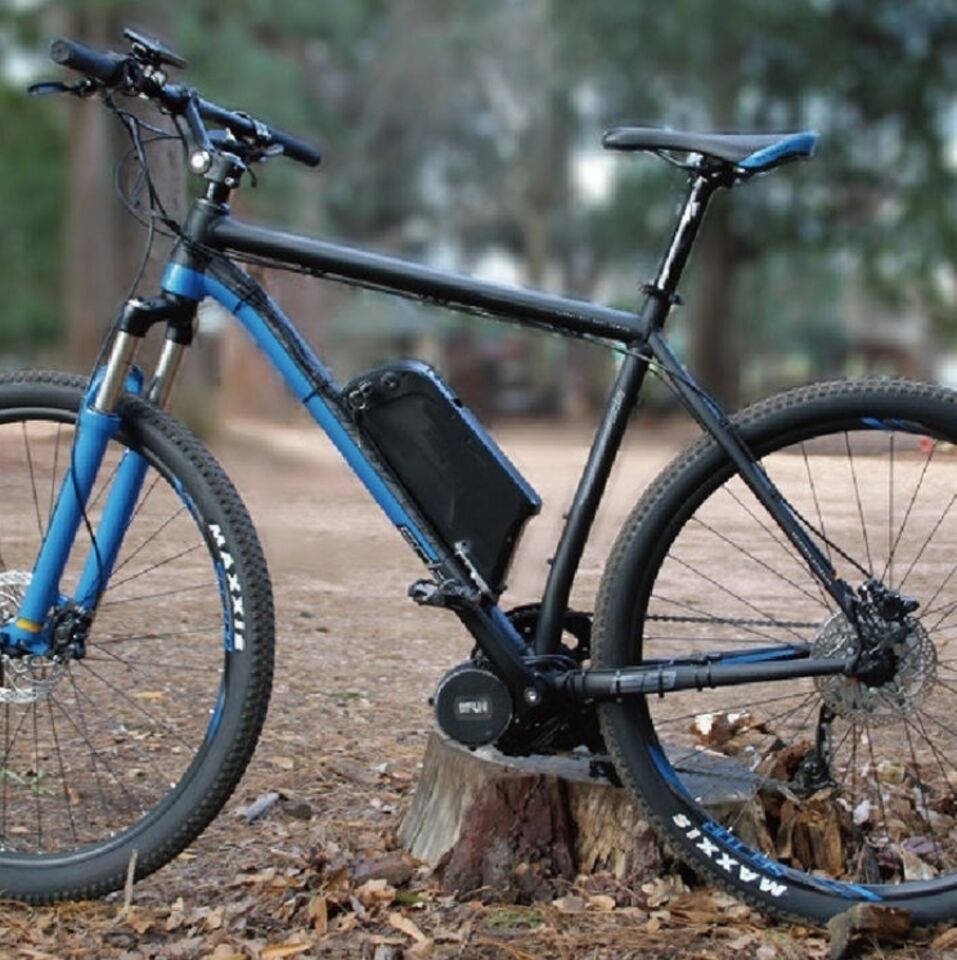

Suits for mountain bike, folding bike, touring bike. Applicable to 90% bikes(19-26inch).
Built-in controller. 5 Variable speed gear.
With Vehicle speed sensors, power brakes, trigger shifters.
Specifications
Specification:
| Brand | Bafang |
| Model | BBS01B |
| Item | Electric Bicycle Modification Kits |
| Voltage | 36V |
| Power | 250W |
| No-load Speed(Rpm) | 83/87 |
| On-load Speed(Rpm) | 78/83 |
| Max Torque(N.m) | 80 |
| Motor Net Weight(kg) | 3.98 |
| Total Net Weight(kg) | 5.37 |
| Total Gloss Weight(kg) | 6.12 |
| Pole Number(2P) | 16 |
| Position | Built-in |
| Wheel Diamater(Inch) | Optional |
| Rated Voltage | 36/48 |
| Bottom Bracket Length | 68 mm |
| Suitable Bike Size | 19- 26 Inch |
| Structure | Gear Drive |
| Waterproof Grade | IP 65 |
| Efficiency | ≥ 80% |
| Working Temperature | -20~45°C |
| dB | Less than 55 |
| Power Sensor | Speed Sensor |
| Magnet Number(Pulse/Circle) | 1 |
| Certification | CE/EN 14764/ROHS |
| Corrosion-proof grade(h) | 96 |
| Gear reduction ratio | 1:21.9 |
| Axis Standard | JIS |
| Color | Black |
Contents

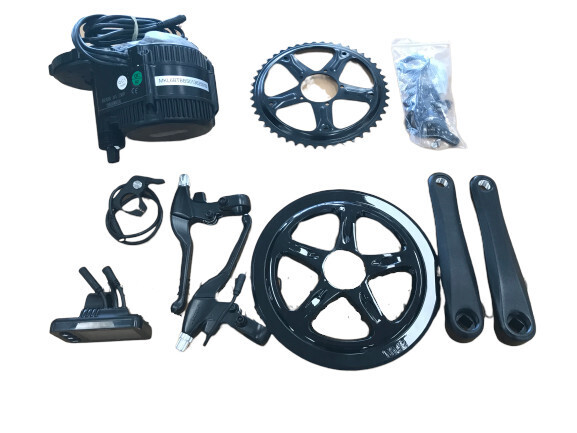

Package Includes:

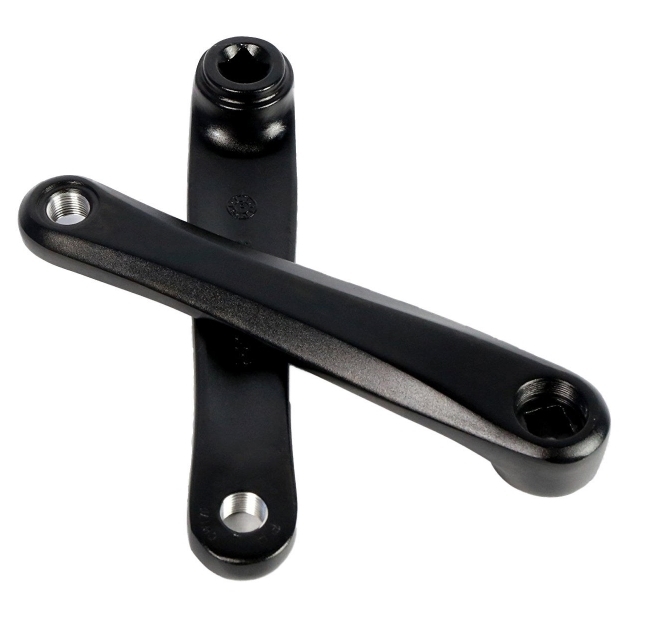

1. Crank

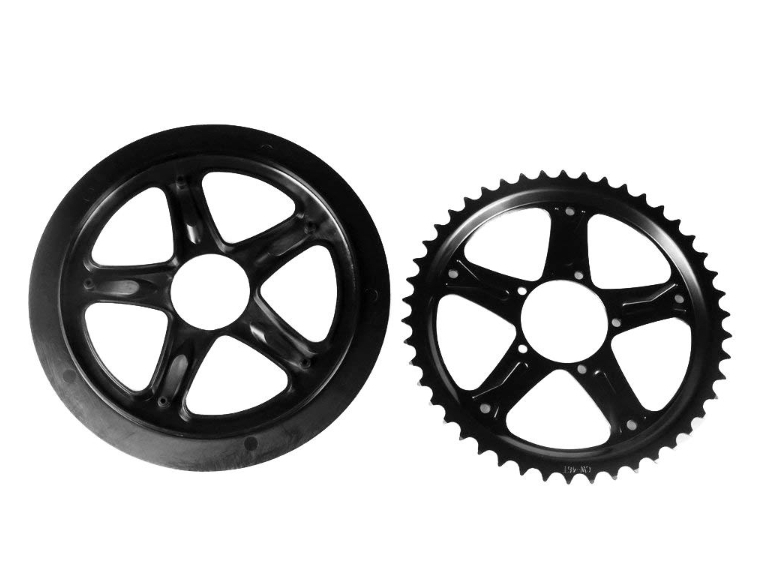

2. Chain Wheel
3. Speed Sensor
4. Power Brakes
5. Trigger Shifters

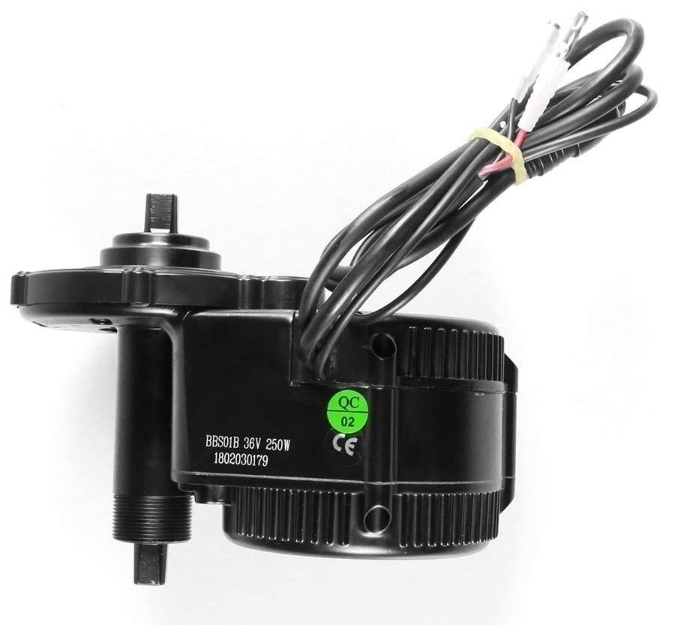

6. Motor
7. Das-Kit L6 Display
